Trekstangen met schroefdraad

U.53K3

U.53K2

U.23K1A

U.53K4

U.53K1

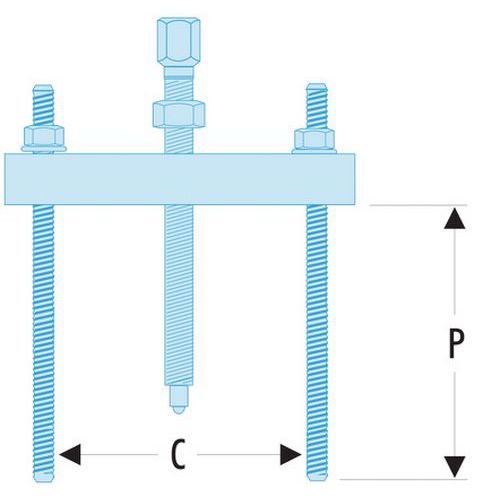

C min - max [mm]: 25 - 95, d [mm]: M10, d1 [mm]: 8, l [mm]: 105, L [mm]: 110, L1 [mm]: 155, L2 [mm]: 20, L3 [mm]: 20, P [mm]: 100, P max [mm]: 100, zeskant [mm]: 8, Trekstang: U.23K1A-03, Ton [t]: 1, Schroeven: U.23K1A-02, T [kN]: 10, [kg]: 0,400

C min - max [mm]: 40 - 110, d [mm]: M16, d1 [mm]: 11, L [mm]: 135, L1 [mm]: 215, L2 [mm]: 25, L3 [mm]: 25, P [mm]: 180, P max [mm]: 180, zeskant [mm]: 11, Trekstang: U.53R1L, Ton [t]: 3, Schroeven: U.51K1-07, T [kN]: 30, [kg]: 0,900

C min - max [mm]: 70 - 200, d [mm]: M16, d1 [mm]: 11, L [mm]: 220, L1 [mm]: 280, L2 [mm]: 30, L3 [mm]: 30, P [mm]: 240, P max [mm]: 240, zeskant [mm]: 11, trekstang: U.53R2L, Ton [t]: 3, Schroeven: U.53K2-07, T [kN]: 30, [kg]: 2.300

C min - max [mm]: 145 - 400, d [mm]: M33, d1 [mm]: 25, L [mm]: 450, L1 [mm]: 420, L2 [mm]: 50, L3 [mm]: 50, P [mm]: 350, P max [mm]: 350, zeskant [mm]: 21, trekstang: U.53R4LA, Tonnen [t]: 5, Schroeven: U.53S4-07, T [kN]: 50, [kg]: 10.700

C min - max [mm]: 75 - 280, d [mm]: M27, d1 [mm]: 21, L [mm]: 320, L1 [mm]: 340, L2 [mm]: 45, L3 [mm]: 35, P [mm]: 300, P max [mm]: 300, zeskant [mm]: 16, trekstang: U.53R3L, Ton [t]: 4, Schroeven: U.53S3-07, T [kN]: 40, [kg]: 5.300
